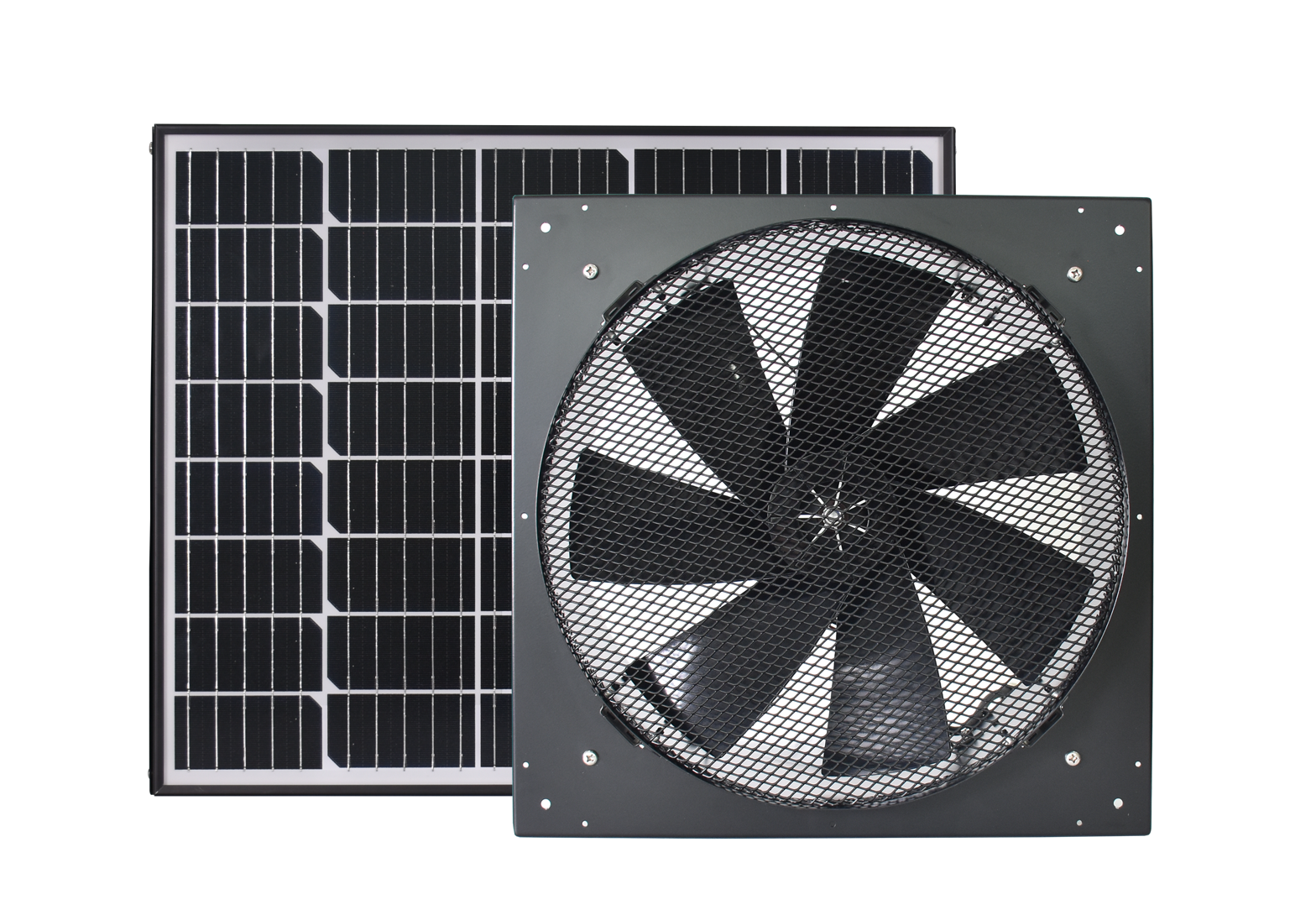

40W solar group wall fan

40W monocrystalline solar panel (495x415x25mm),
24V brushless DC motor,

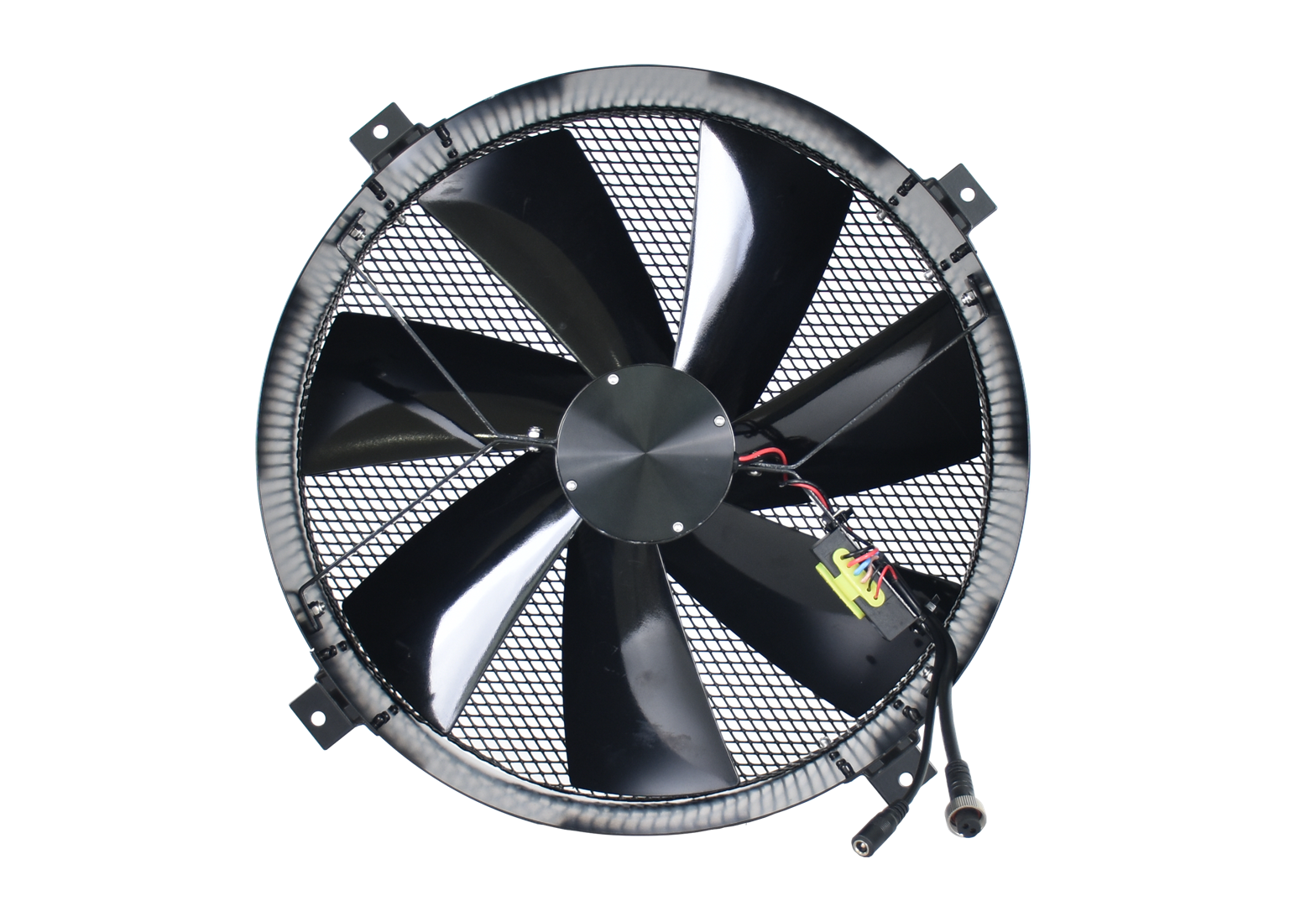

14'' Nylon-Fiber-Aluminum fan blades (host size: Φ368x175mm),
with front side metal fan guard,
10m cable to connect fan host & solar panel
【work time: sunny day hours, when sunlight is available】

Designed lifespan more than 15 years,

whole unit warranty 5 years

(in condition of no acid nor alkali corrosive environment)

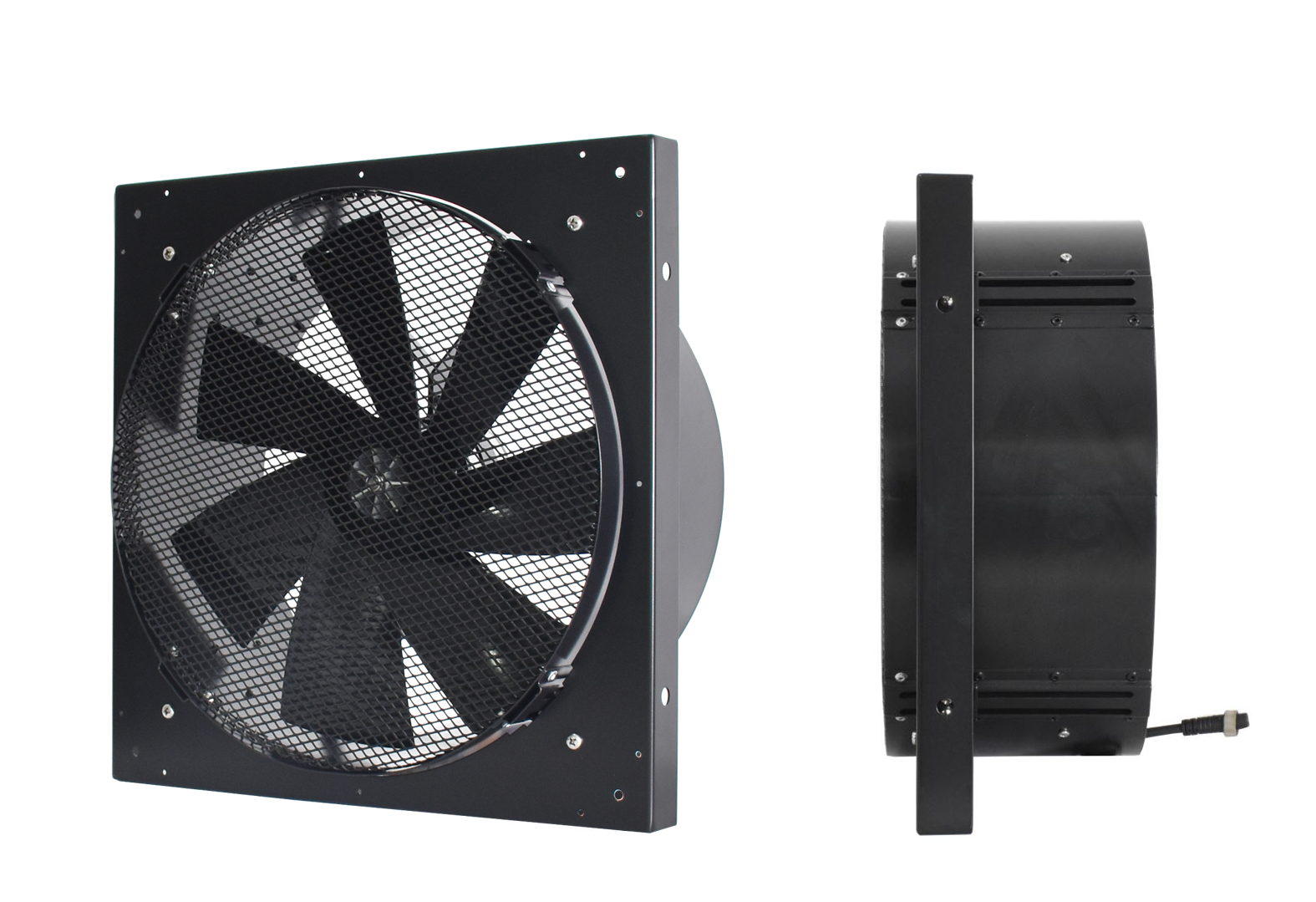

Sunny Day Time Freely Running Solar Wall Exhaust Fan

The solar fan auto-runs 100% powered by solar panel in sunny hours, when sunlight is available.

Square Frame
to connect several wall fans together, or to support an easier installation of product,
size: 416*416mm, only suitable for the 14'' wall fan

With additional mounting frames and screws, 4 / 6/ 9 sets of 14’’ wall fan can be assembled into a large solar extracting fan, to meet more needs in ventilating, suit various position by flexible installation.
- Power

  40W
- Solar Panel

  Monocrystalline solar panel
- Blades

  14 inch Nylon axial fan blades, 7 pcs
- Material

  Galvanized steel with anti-rust, anti-UV powder coating
- Optional Back-up

  Adapter/Solar Battery
- Other accessories

  Adjustable Thermostat, Hand Switch, Fan Guard
