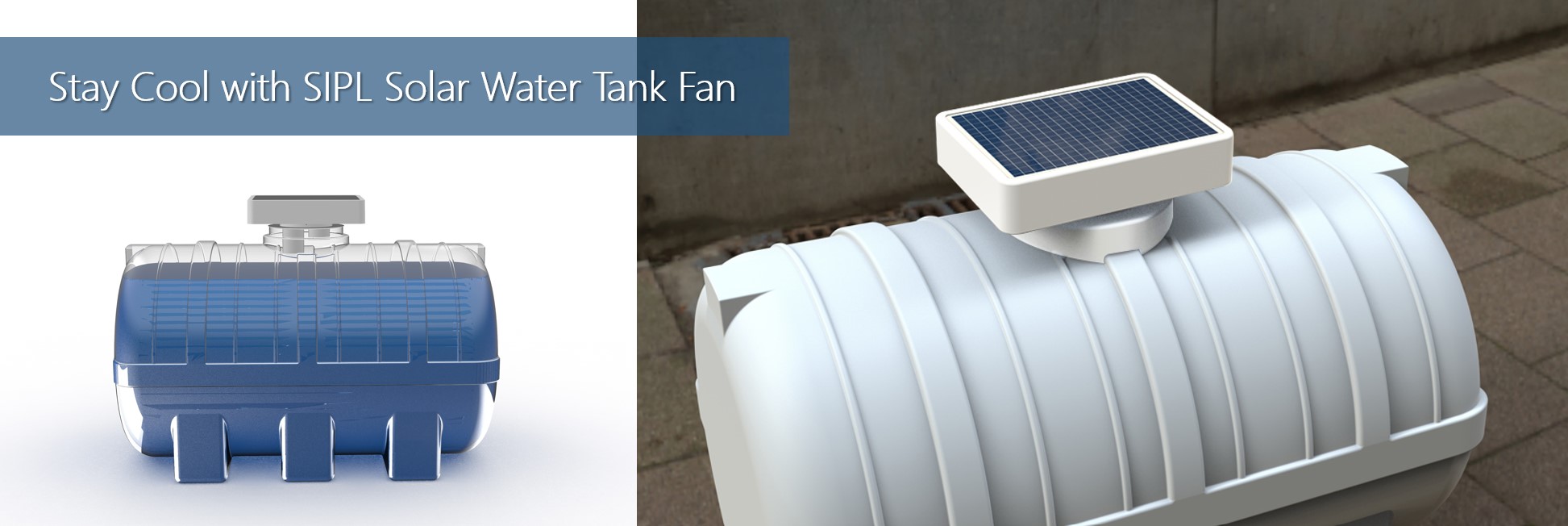

Solar Water Tank Cooler

A Smarter Way to Keep Water Tanks Cool





Heated by intense sunlight, the water inside the water tank can be over 60℃ and as hot as soup when you take a shower.

How do we usually cool down a bowl of hot soup?  Yes, we blow to it. This is exactly how newly-developed SIPL solar water tank cooler fan works.

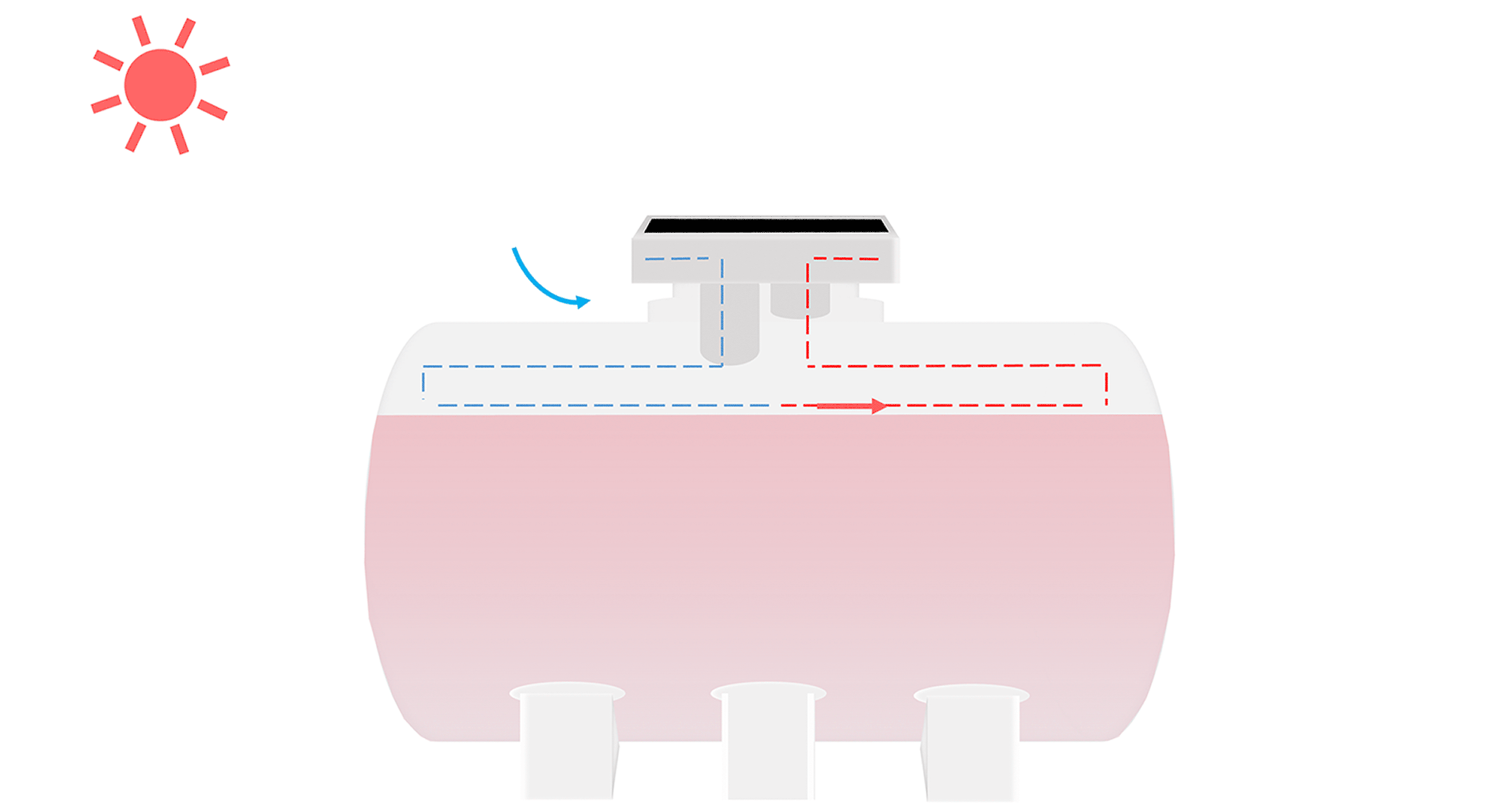

Naturally, hotter water moves up to the surface and turn to steam, and the steam will absorb a lot of heat.

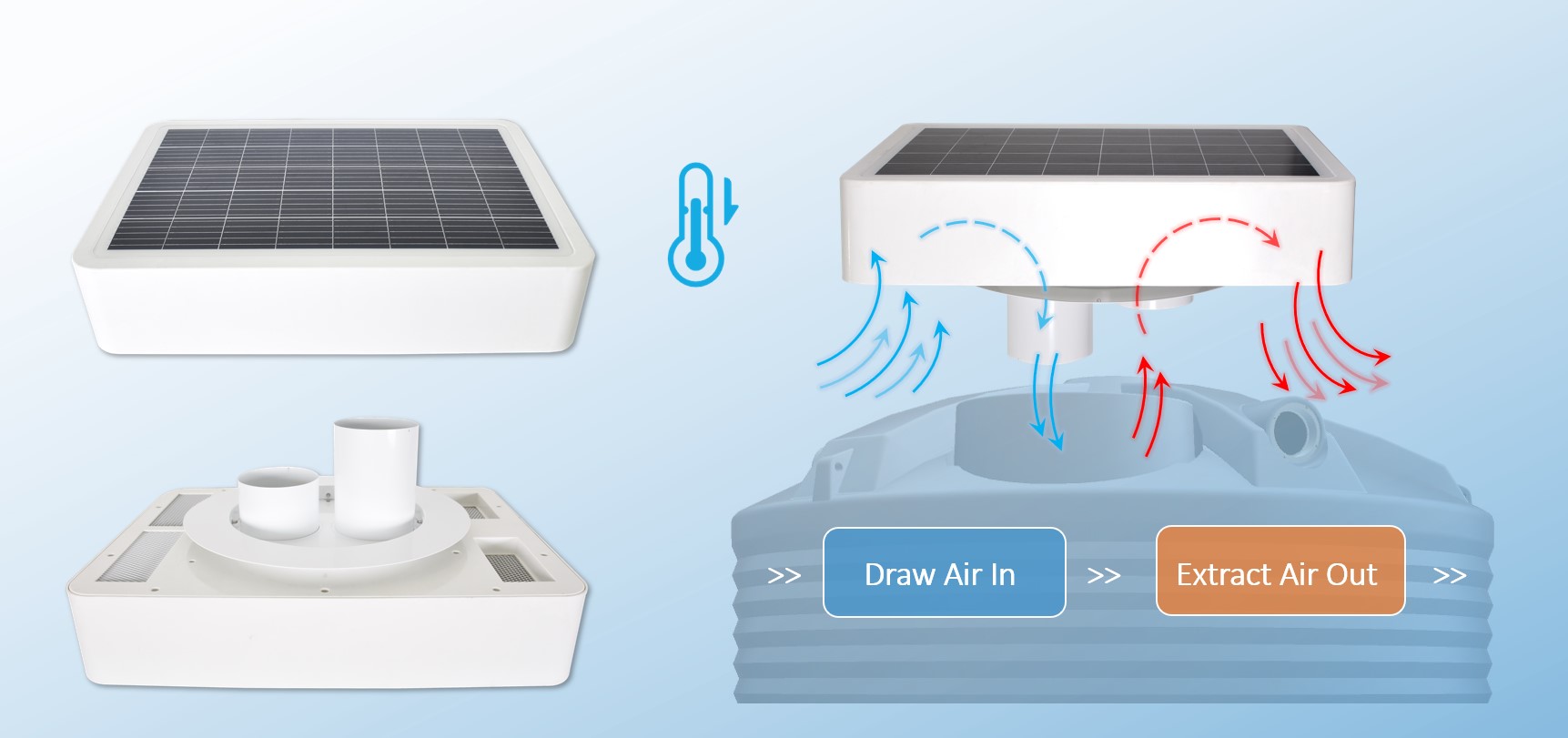

The solar extractor continuously improves air circulation inside the tank, bringing in outer cooler air while removing hot, moisture-laden air from the tank, helping lower water temperature over time.



Powered Directly by Solar Energy, SIPL solar water tank fan will automatically starts operating when sunlight becomes available, actively promoting air movement inside the water tank with zero daytime electricity consumption

An energy-efficient and effective solution for water tank cooling. Upgrade to smarter solar cooling today.

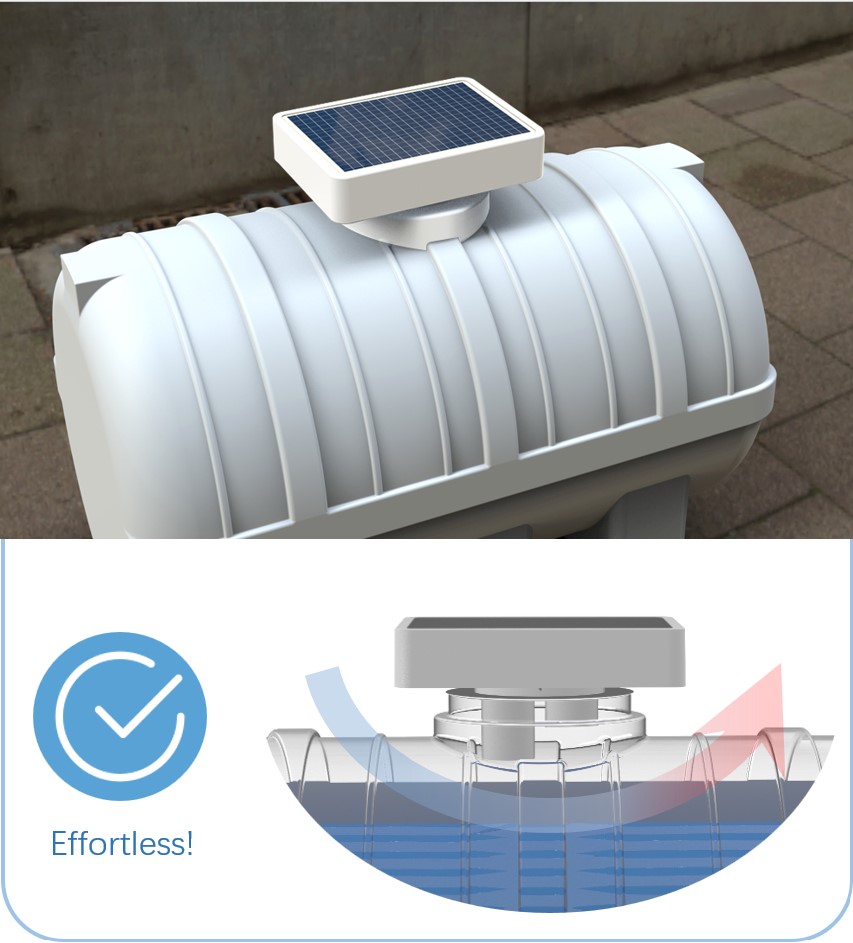

Now, install this solar extractor box on your water tank and

you can say goodbye to the scalding shower water, enjoy "ice bath" every day!

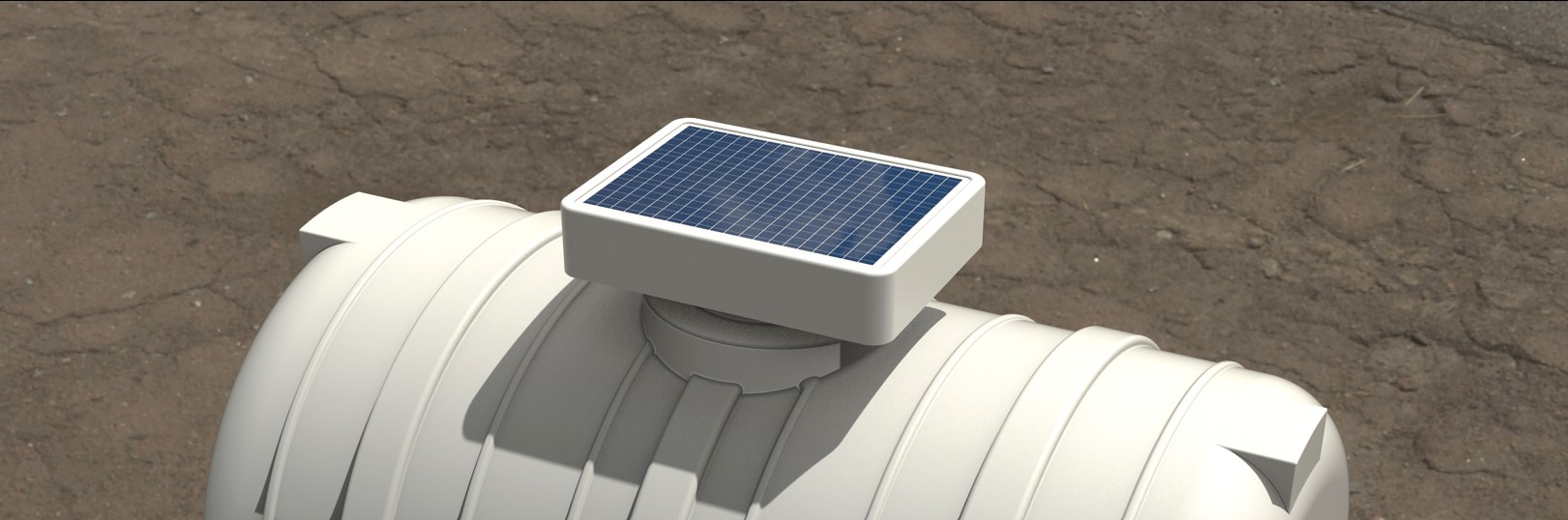

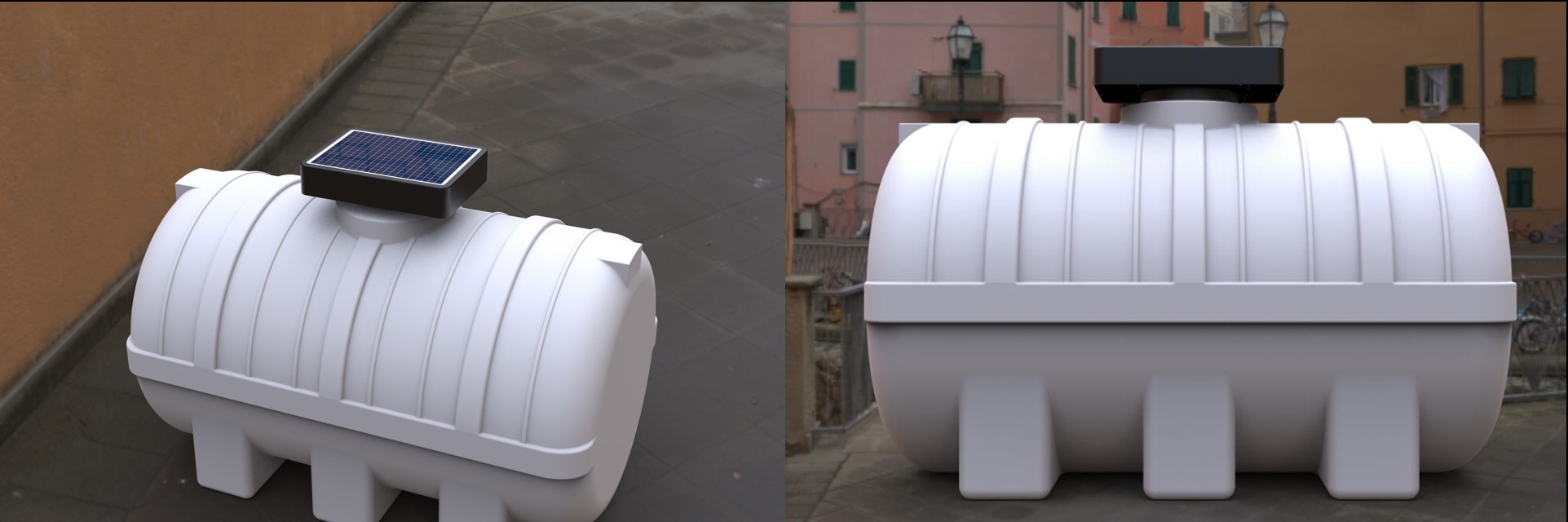

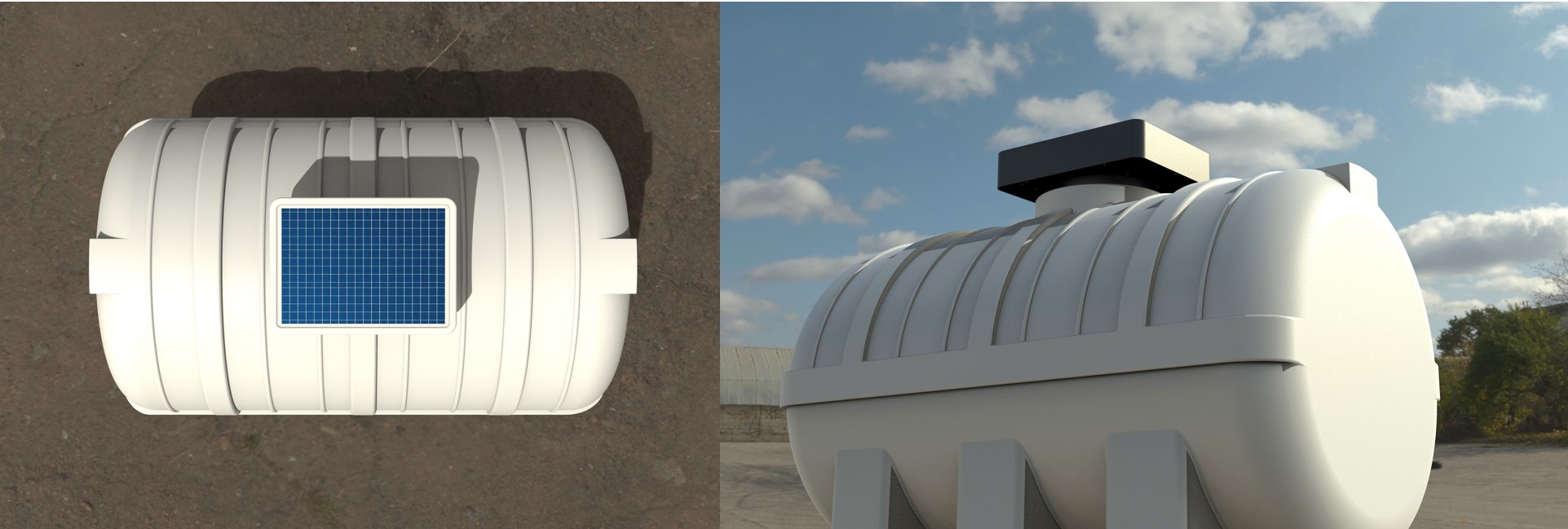

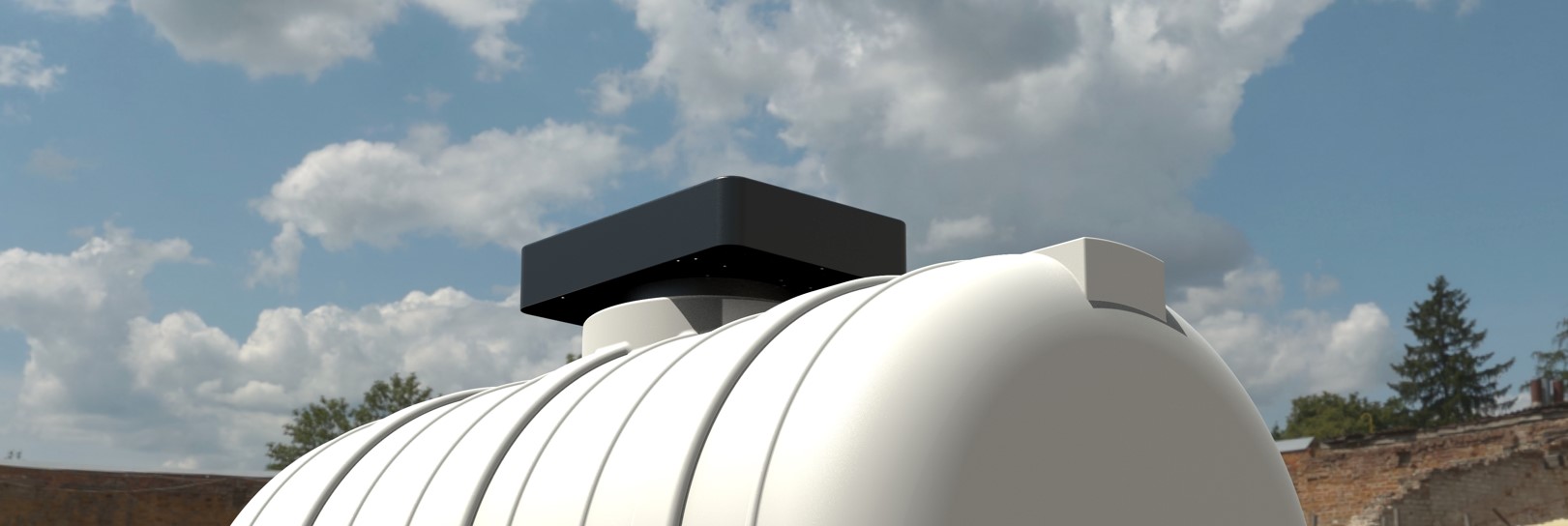

Self-contained Solar Extractor

Wiring-Free Design for Easy Installation







Take solar energy as power source, SIPL solar water tank cooler fan operates automatically whenever sufficient sunlight is available.

No electrical wiring is required, making installation simple and efficient. Also, the wiring-free design minimizes maintenance requirements and improves durability.



solar extractor fan for water tank cooling
solar extractor fan for water tank cooling
solar extractor fan for water tank cooling
solar extractor fan for water tank cooling
solar extractor fan for water tank cooling
solar extractor fan for water tank cooling
solar extractor fan for water tank cooling
solar extractor fan for water tank cooling
solar extractor fan for water tank cooling
solar extractor fan for water tank cooling

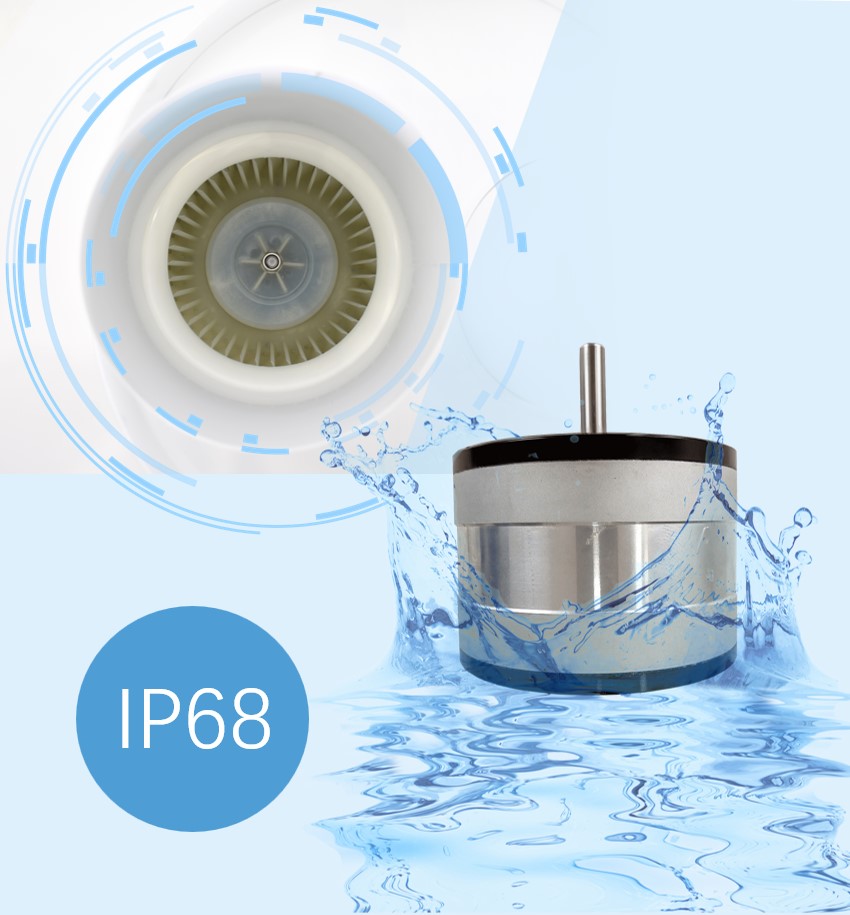

Premium-Grade BLDC Motor

Engineered for Long-Term Reliability





Proprietary Brushless DC Motor Design in premium quality, water resistance reaching IP68, no carbon brush, no mechanical commutation, optimized for maximum energy efficiency for higher efficiency and longer lifespan of over 10 years. This powerful BLDC motor ensures constantly good performance and reliable cooling performance by SIPL solar water tank cooler fan.

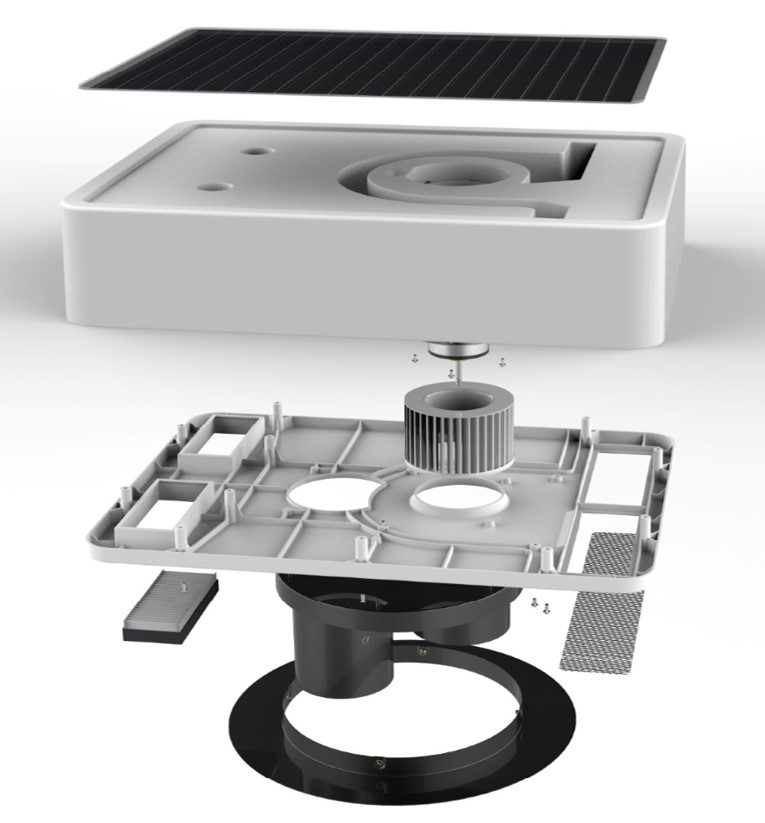

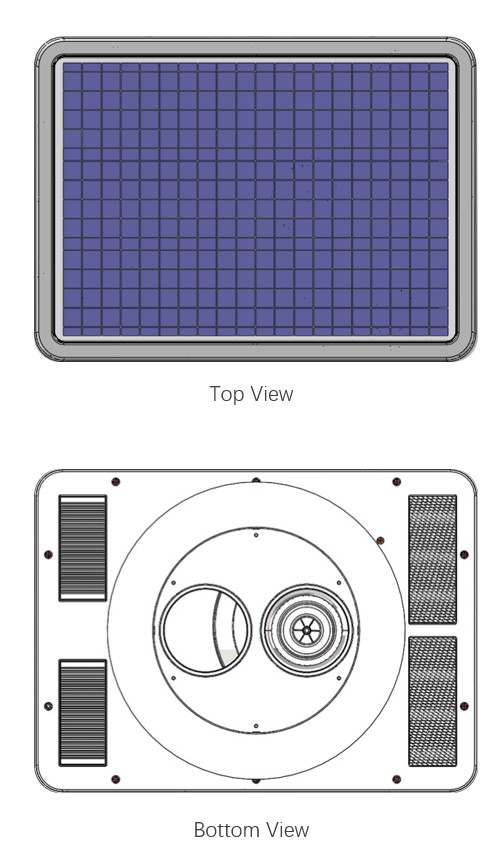

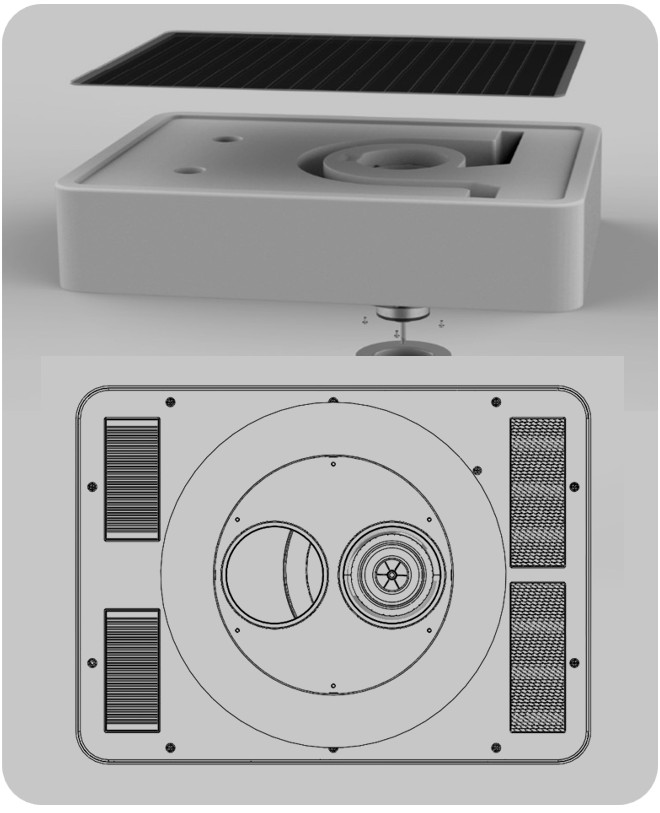

Integrated Compact Design







Fully integrated solar panel and fan assembly

on top and strong unibody fan casing, finished with anti-UV, anti-rusting SMC material, equipped with centrifugal type nylon blade wheel, air inlets and outlets are respectively arranged on both sides of fan case, including two detachable air ducts to guide air movement inside water tank — integrated design with compact and practical design.

Beat the Heat with SIPL Solar Water Tank Cooler





 SIPL Solar Water Tank Fan is totally self-sustained, wiring-free and with robust case for waterproof outdoor standard

and long service life.  Easy to install, auto-operation, zero daytime electricity consumption and eco-friendly!

It is time to equip your water tank with this solar extractor box to lower the

water temperature for a comfortably cool showering experience!



  Solar Water Tank Cooler Specs









Solar Panel

 70W 24V Monocrystalline solar panel(722x512x4.5mm)

Fan Blades      6'' centrifugal type nylon blade wheel
Fan Housing      SMC (fiberglass and anti-UV resins)
Fan Motor      Brushless DC Motor (IP68)
Air Duct

 2 stainless steel air ducts

 250mm long air duct for air in, 120mm short air duct for air out

Air Inlet  2 x 190*85mm air inlets
Air Outlet  2 x 230*85mm air outlets
Fan Base  diameter 530mm aluminum fan base
Mesh   Aluminum mesh in air inlet & ourlet
Host Size      790x580x168mm
Color      White

Optional

Accessory

 Dustproof air filters (attached to air inlet)

Installation

Suitable for water tank opening within dia. 500mm

Work Time     Daytime
